Nylon Stuffing Tubes
|
 |
 |
ASTM Designation F1836M
To obtain a copy of this standard click on
the ASTM logo above.
Then enter F1836M in the site search box.
N.P.T. (NYST-3)
|
 |
 |

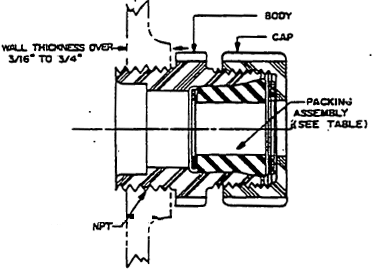

Each unit consists of body and cap.
Packing assemblies & neoprene plugs
are available for all sizes.
MILITARY SPECIFICATION MIL-S-19622/3B (SH)
Body M19622/7B(SH), Cap M19622/10B(SH)
Size |
Part #
NYST-3
|
Packing
Assembly
|
Cable Range |
N.P.T.
Inch
|
Military
Part #
M19622/3
|
NSN
5975-00
|
Supersedes
Part # |
Inch |
MM (Metric) |
Min. |
Max. |
Min. |
Max. |
1 |
-001
|
NYST-16 |
.077 |
.296 |
1.96 |
7.52 |
1/2 |
-001 |
808-4063 |
MS 17039-1 |
2 |
-002 |
NYST-17 |
.275 |
.472 |
6.99 |
11.99 |
3/4 |
-002 |
808-4064 |
MS 17040-1 |
3 |
-003 |
NYST-18 |
.410 |
.472 |
10.41 |
11.99 |
1 |
-003 |
877-6955 |
MS 17273-1 |
4T |
-004 |
NYST-19 |
.450 |
.777 |
11.43 |
19.74 |
1 |
-004 |
892-9259 |
MS 17041-1 |
5 |
-005 |
NYST-20 |
.752 |
1.113 |
19.10 |
28.27 |
1-1/2 |
-005 |
808-9272 |
MS 17042-1 |
6 |
-006 |
NYST-21 |
.806 |
1.390 |
20.47 |
35.31 |
2 |
-006 |
808-4066 |
MS 17043-1 |
7 |
-007 |
NYST-22 |
1.433 |
1.610 |
30.40 |
40.89 |
2-1/2 |
-007 |
808-4067 |
MS 17044-1 |
8 |
-008 |
NYST-23 |
1.625 |
2.000 |
41.28 |
50.80 |
3 |
-008 |
808-4068 |
MS 17045-1 |
9 |
-009 |
NYST-24 |
2.030 |
2.700 |
51.56 |
68.58 |
3-1/2 |
-009 |
808-4069 |
MS 17046-1 |
|
 |
Please select maximum inner diameter D of packing bushing that is nearest to the maximum outer diameter DIA. of the cable or cord being used. Packing bushing I.D. must be equal to or slightly larger than cable maximum O.D.
For use with (but not limited to) cables and cords that meet IEEE-45, IEC 92-3 and US Navy Standards.
|
|
Cable & Cord Types
|
POWER AND LIGHT
|
COMMUNICATION
|
ELECTRONIC
|
SPECIAL PURPOSE
|
CONTROL
|
INSTRUMENTATION
|
TELEPHONE
|
PORTABLE CORDS
|
Watertight, Non-watertight, Flexing, Non-flexing service.
|
|
|
|
