Military Specification Sheet
MIL-S-19622/9A(SH)

(A) Stuffing Tube, Nylon: Locknut, Straight Body

This specification is approved for use by the Naval Sea Systems Command, Department of the Navy, and is available for use by all Departments and Agencies of the Department of Defense.

The requirements for acquiring the product described herein shall consist of this specification sheet and the issue of the following specification listed in that issue of the Department of Defense Index of Specifications and Standards (DODISS) specified in the solicitation: MIL-S-19622.

INCH-POUND
MIL-S-19622/9A(SH)
24 June 1986
DOWNLOAD:
SUPERSEDING
MIL-S-19622/9(SHIPS)
10 November 1966

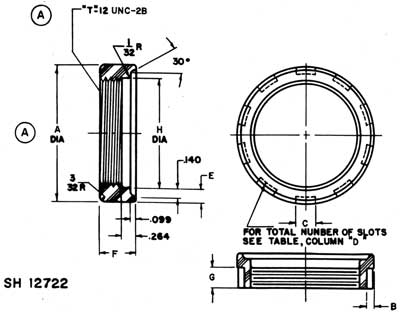

(A) FIGURE 1. Dimensions and configuration

(A) denotes changes.


(A) TABLE I. Size Selection
(A)
Tube
Size
Military
Part
Number
Locknut dimensions and configuration 1/ 2/ Superseded
Part Number
A
DIA
B C D
(slots)
E F G H
DIA
T
1 M19622/9-001 1.250 0.093 0.250 8 0.172 0.514 0.250 0.906 7/8 MS16169-19
2 M19622/9-002 1.375 .093 .250 8 .172 .514 .250 1.031 1 MS16169-20
3 M19622/9-003 1.500 .093 .250 8 .172 .514 .250 1.156 1-1/8 MS16169-21
(A)
3/
4
M19622/9-004 1.625 .093 .250 8 .172 .514 .250 1.281 1-1/4 MS16169-22
4T M19622/9-005 1.750 .093 .250 8 .172 .514 .250 1.406 1-3/8 MS16169-22T
5 M19622/9-006 2.500 .125 .375 10 .235 .639 .375 2.031 2 MS16169-23
6 M19622/9-007 3.000 .125 .500 10 .235 .764 .500 2.531 2-1/2 MS16169-24
7 M19622/9-008 3.375 .187 .500 10 .297 .764 .500 2.781 2-3/4 MS16169-25
8 M19622/9-009 3.875 .187 .500 12 .297 .764 .500 3.281 3-1/4 MS16169-26
9 M19622/9-010 4.750 .187 .625 12 .360 .764 .500 4.031 4 MS16169-27

(A) 1/ Dimensions are in inches.
2/ Tolerance shall be as follows:

Decimals - Plus or minus 0.010 per linear inch, whichever is greater.
Angular dimensions - Plus or minus 30 minutes.
Threads - As specified in FED-STD-H28/2.

3/ Original size 4 is for replacement in existing installations only when size 4T does not fit.

(A) Requirement:

Marking. Tube size in 1/8 inch high raised letters molded on face of locknut.

AMSC N/A

FSC 5975

DISTRIBUTION STATEMENT A

Approved for public release; distribution is unlimited



Preparing activity: Navy - SH (Project 5975-N612-9)
