Military Specification Sheet
MIL-S-19622/5B(SH)

(B) Stuffing Tube, Nylon: Body, Straight

This specification is approved for use by the Naval Sea Systems Command, Department of the Navy, and is available for use by all Departments and Agencies of the Department of Defense.

The requirements for acquiring the product described herein shall consist of this specification sheet and the issue of the following specification listed in that issue of the Department of Defense Index of Specifications and Standards (DODISS) specified in the solicitation: MIL-S-19622.

INCH-POUND
MIL-S-19622/5B(SH)
24 June 1986
DOWNLOAD:
SUPERSEDING
MIL-S-19622/5A(SH)
19 May 1967

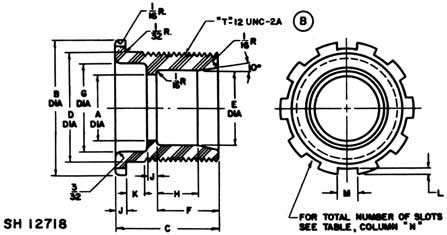

(B) FIGURE 1. Dimensions and configuration

(B) denotes changes.


(A) TABLE I. Size Selection
(B)
Tube
Size
Military
Part
No.
Body dimensions and configuration 1/ 2/ Super-
seded
Part No.
A
DIA
B
DIA
C D
DIA
E
DIA
F G
DIA
H J
3/
K L M N
slots
T
1 M19622/5
-001
0.350 1.250 1.328 0.875 0.560 0.687 0.625 0.437 0.125 0.312 0.093 0.250 8 7/8 MS16168
-1
2 -002 .564 1.375 1.328 1.000 .625 .750 .750 .437 .125 .312 .093 .250 8 1 -2
3 -003 .687 1.500 1.328 1.125 .765 .750 .875 .437 .125 .312 .093 .250 8 1-1/8 -3
4/ 4 -004 .825 1.625 1.328 1.250 .906 .750 1.000 .437 .125 .312 .093 .250 8 1-1/4 -4
4T -005 .825 1.750 1.328 1.375 .906 .750 1.000 .437 .125 .312 .093 .250 8 1-3/8 -4T
5 -006 1.187 2.500 1.890 2.000 1.343 1.125 1.625 .750 .187 .312 .125 .375 10 2 -5
6 -007 1.505 3.000 2.203 2.500 1.750 1.375 2.125 .812 see note 2 .312 .125 .500 10 2-1/2 -6
7 -008 1.689 3.375 2.328 2.750 1.937 1.500 2.375 .875 .187 .312 .187 .500 10 2-3/4 -7
8 -009 2.089 3.875 2.422 3.250 2.312 1.750 2.875 1.000 .187 .312 .187 .500 12 3-1/4 -8
9 -010 2.842 4.750 2.484 4.000 3.250 2.000 3.625 1.093 .187 .312 .187 .625 12 4 -9

(B) 1/ Dimensions are in inches.

2/ Tolerance shall be as follows:

Decimals - Plus or minus 0.010 per linear inch, whichever is greater.
Angular dimensions - Plus or minus 30 minutes.
Threads - As specified in FED-STD-H28/2.

3/ Internal shoulder dimension - 0.250.
External shoulder dimension - 0.187.

4/ Original size 4 is for replacement in existing installations only when size 4T does not fit.

(A) Requirement:

Marking. Tube size and manufacturer’s trade mark or logo in 1/8 inch high raised letters molded on face of flange.

AMSC N/A

FSC 5975

DISTRIBUTION STATEMENT A

Approved for public release; distribution is unlimited



Preparing activity: Navy - SH (Project 5975-N612-5)
