Military Specification Sheet
MIL-S-19622/4A(SH)

Stuffing Tubes, “Y” Type, Nylon

This specification is approved for use by the Naval Sea Systems Command, Department of the Navy, and is available for use by all Departments and Agencies of the Department of Defense.

The requirements for acquiring the product described herein shall consist of this specification sheet and the issue of the following specification listed in that issue of the Department of Defense Index of Specifications and Standards (DODISS) specified in the solicitation: MIL-S-19622.

INCH-POUND
MIL-S-19622/4A(SH)
24 June 1986
DOWNLOAD:
SUPERSEDING
MIL-S-19622/4(SHIPS)
10 November 1966

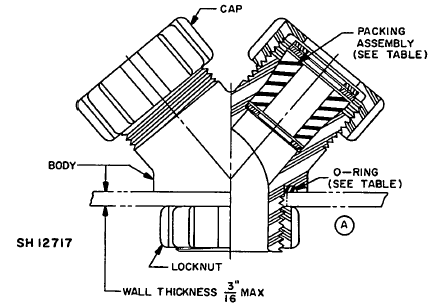

FIGURE 1. Configuration

(A) denotes changes


(A) TABLE I. Size Selection
Tube
Size
Military
Part
Number
Military Part Numbers of Components: M19622 Packing
Assembly 2/
(A)

O-Ring 2/
Body Cap Locknut
1 M19622/4-01 /8-001 /10-001 /15-01 M19622/16 MS28775-212
2 M19622/4-02 /8-002 /10-002 /9-02 M19622/17 MS28775-214
3 M19622/4-03 /8-003 /10-003 /15-02 M19622/18 MS28775-216
4T M19622/4-04 /8-004 /10-005 /9-05 M19622/19 MS28775-220

1/ For information only, not to be furnished.

AMSC N/A

FSC 5975

DISTRIBUTION STATEMENT A

Approved for public release; distribution is unlimited



Preparing activity: Navy - SH (Project 5975-N612-4)
